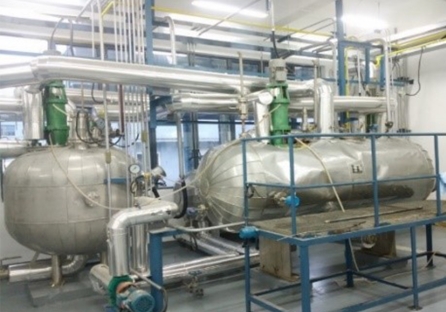

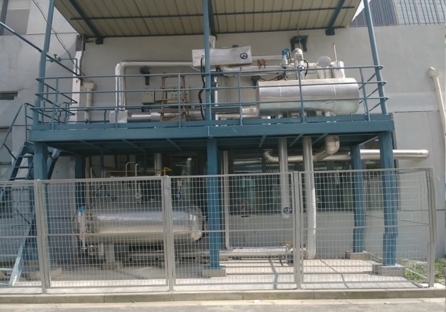

Double tank molten salt heat storage steam system
The system uses two high and low temperature molten salt storage tanks to store heat in the molten salt. When heat is needed, the molten salt exchanges heat with water to produce high temperature steam. The steam temperature is 200-500 ° C and the steam flow rate is 5-20 t/h. The technology is a technology explicitly supported and promoted by national policies such as the National Air Pollution Prevention Action Plan, National Renewable Energy Consumption, and Power Peaking and Valley Filling.

As a heat storage medium, molten salt has the advantages of high temperature and wide range, good heat transfer performance and large specific heat capacity. It has an irreplaceable advantage in the field of heat storage system. The double tank molten salt heat storage steam system can be widely used in distributed energy storage, industrial waste heat recovery, industrial heating, coal to electricity, renewable energy consumption, clean heating / cold, thermal power flexibility and solar thermal power generation.

The double tank molten salt heat storage steam system has the following characteristics:

1. Diversified heat sources which can use sunlight, valley electricity / abandoned wind and optoelectronics, industrial waste heat, etc.

2. Producing continuous and stable superheated steam.

3. If valley electricity is used as the heat source, the steam cost is 1/3~1/2 of the electric boiler.

4. Intelligent remote control, enabling unattended, security and stability.

5. Green, environmentally friendly, long system life.
