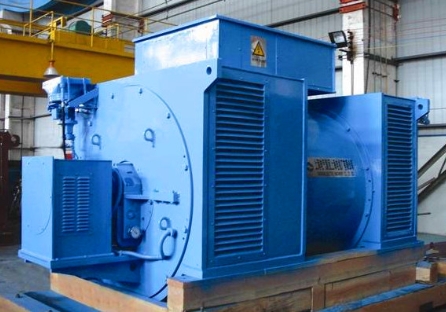

Emergency diesel generator
2009Since the completion of the first set of domestic emergency diesel generator in, more than 80 sets of similar units have been provided for relevant projects of Guanghe, CNNC and CNNC, and relevant cooperation units include ALSTOM, Areva, shaanchai, shanchai, Hudong heavy machinery, etc.The 3700kw-8300kw series products that have been produced can completely cover and meet the requirements of class 1E and non class 1E similar products of China's second-generation, second-generation plus and some third-generation nuclear power projects under construction, and completely replace the imported products.

    Leading product technology in China

    Motor capacity 3700kw ～ 9000kw

    Number of poles: 4-10

    Speed: 600-1500r / min

    Rated voltage: 6.3kV, 10.5kv

Typical projects: Fuqing, Yangjiang, Hongyanhe, Tianwan, Lufeng, Fangchenggang, Chashma, etc

All class 1E emergency diesel generators have nuclear safety equipment design license and manufacturing license;

Typical performance:

1.Fangchenggang nuclear power station unit 1 and 2 tfhy8000-10 8000kw 10KV

2.Ningde nuclear power station unit 3 and 4 tfhy6300-6 6300kw 6.6kV

3.Xiapu nuclear power station 1 and 2 units tfhy5500-4 5500KW 6.6kV

years.The generator adopts a solid and reliable structure design, which can meet the requirements of safe starting and operation under earthquake conditions.With the advanced design of radial axial mixed air path and oil cooling system, the temperature rise of the whole machine is reduced, the structure is simple and reliable, and the system reliability is improved.
