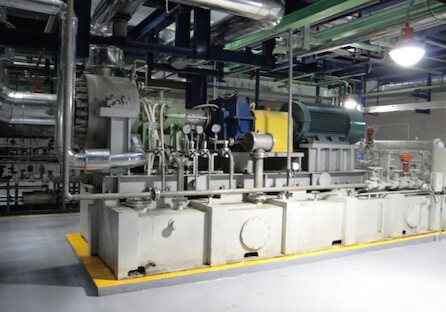

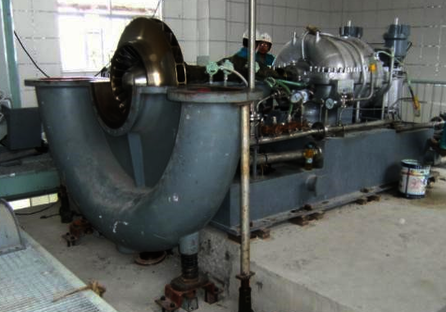

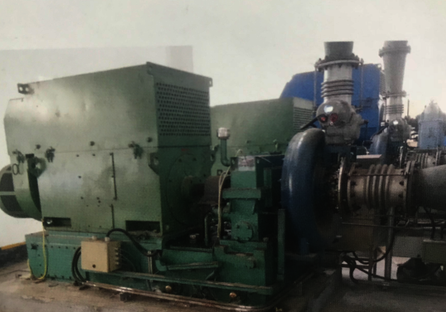

With a wide range of flowrate (50-2500m3/min), high efficiency and operating stability, SEBW's single-stage high-speed blowers have been widely used in nuclear, chemical, power，environment and other industries, and won great popularity among customers.
The single-stage high-speed blower is developed by Shanghai Electric Blower Works Co., Ltd. on the basis of absorbing the advanced design and manufacturing technologies of similar latest products in the world, and widely used in medium and small scale water treatment factories, desulfurization systems and chemical processes, etc.
The up-to-date design technologies and software are adopted for design and analysis of meridian flow passage and blading of blower, and for aerodynamic optimization matching of rotor and stator. The stage efficiency is up to 84% and even higher.
To ensure operating reliability, finite element analysis method is used for strength and rotor dynamics analysis of impeller and rotor.
To reduce space, gearbox, motor and lubrication system are skid-mounted on one pedestal. The advantages of assembly and disassembly are convenient and single storey layout.
Adjustable stainless IGV with airfoil profile is used to ensure a wide range of mass flow with superior efficiency.
Automatic control system with friendly user interface and multi-parameter anti-surge control method are adopted.
