Battery Pack
Multi-level BMS architecture;Multi-level balance guarantees the consistency;Easy to install and maintain;Can be widely used on the power generation side, grid side and user side
    • Level Ⅲ BMS design architecture for real-time data collection, status monitoring and control to protect lithium battery safety

    • High charge and discharge cycle efficiency, maximum system efficiency up to 96%

    • Long life cycle, batteries still remain 80% of total charge and discharge capacity after 5,000 cycles usage

    • Efficient battery module and system thermal design to meet the heat dissipation requirements of different working conditions

    • Modular design with terminal on the front of the pack, easy to install and maintain

    • Natural cooling design, good battery temperature uniformity

    • Battery has passed safety test of GB, UL, UN, IEC, ISO, etc.


BIG BRAND                                                                                                         SUPER QUALITY

Endorsement from Shanghai Electric  Group                                            Advanced battery technology and production line

Technical support from Guoxuan Hightech                                               Standardized design

Seven domestic lithium battery production bases                                    Testing and certification by third-party authorities

Five lithium battery global research institutes

HIGH SAFETY                                                                                   MAINTENANCE-FREE

Multi-level coordination control and protection                                          Cloud platform-based multifunctional management

System-level refined thermal design and thermal management               Online real-time system monitoring and optimization

Flexible and efficient system solutions                                                      Remote fault diagnosis and early warning

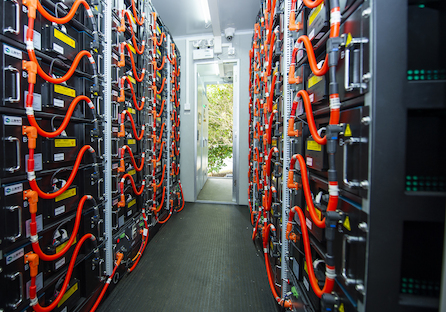

Battery rack type

RLFP18P12S19M

RLFP16P12S21M

RLFP16P12S21M

RLFP8P12S19S

Type

Energy type (≤0.3C)

Energy type(≤0.5C)

Medium-power type (≤1C)

Power Type(≤2C)

Size(W*D*H)(mm)

1240*610*2220

1330*610*2280

1330*610*2280

1360*600*2220

Weight (kg)

1600

1550

1550

1500

Rated Capacity(Ah)

230.4

204.8

198.4

160

Rated Energy(kWh)

168

165

159.9

116.

Rated Voltage (V) 729.6 806.4 806.4729.6

Operating Voltage (V)

638.4~820.8

705.6~907.2

705.6~907.2

638.4~820.8

Optimum Operating Temperature (℃)

10~40

10~40

10~40

10~40

Battery rack type

RLFP2P16S15M RLFP3P10S21M RLFP3P10S23M
TypeEnergy type(≤0.5C) Energy type (≤0.5C) Energy type(≤0.5C)
Size (W*D*H)(mm) 943*591*2310 1411*591*2310 1600*800*2220
Weight(kg)160017502350

Rated Capacity(Ah)

210315315

Rated Energy(kWh)

161.28211.68230
Rated Voltage (V)768672736

Operating Voltage (V)

600~852 525~745.5 644~828

Optimum Operating Temperature (℃)

10~40 10~40 10~40
