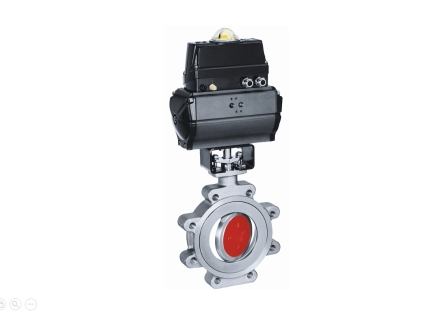

DANAÏS® MT II (Butterfly valve)
Applications: Nuclear power stations, steam, vacuum service and all applications requiring offset-disc butterfly valves.

Almost all the nuclear power stations in operation or under construction are using valves provided by SEC-KSB.



Design:

Double-offset butterfly valve with plastomer or metal seat rign (fire-safe design); without gland packing; maintenance-free. With lever or gearbox, pneumatic, electric or hydraulic actuator. Body made of cast steel, carbon steel or stainless steel. With wafer-type body (T1), full-lug-type body (T4) or single-piece double-flanged body (T70 with flat or raised faces. Body types T4 and T7 can be used for dead-end service. EN, ASME, JIS connections. Certification according to TA-Luft.

Technical data:

p [bar] max. 50 or class 300

DN 50-600

T [℃] -50 to +260
