RHM/RVM
Applications: Core flooding, emergency-cooling and residual-heat-removal systems, volume control systems, high-pressure charging, control-rod drive systems, high- and medium-pressure safety injection systems, auxiliary feed-water systems, start-up and shutdown feed-water systems.

RHM/RVM is a key Class II equipment for safety-related and auxiliary systems in nuclear power plants. SEC-KSB's technology is introduced from KSB, which has supplied more than 150 sets of similar products to NPPs around the world over past 4 decades.

SEC-KSB has provided Fuqing 5&6 - China's 1st HPR1000 reactors with RHMs, for which all the technical improvments and verification were done by itself.

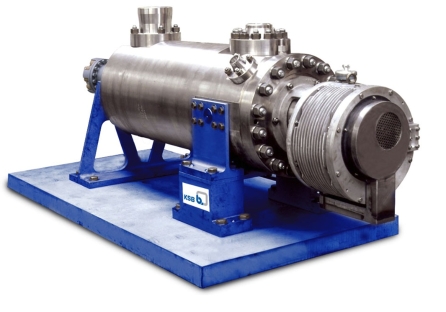

  • Multistage centrifugal pump, double casing and radial split structure, forged casing, stable operation under extreme small flow rate;

  • Shaft surface strengthening technology, increases the fatigue characteristic and surface hardness;

  • Quick start without pre-lubrication;

  • Easy service due to pull-out design;

  • Patent design of casing wear ring and guide bearing reduces wear and increases operation stability.
