Shanghai No.1 Machine Tool Works Co., Ltd.

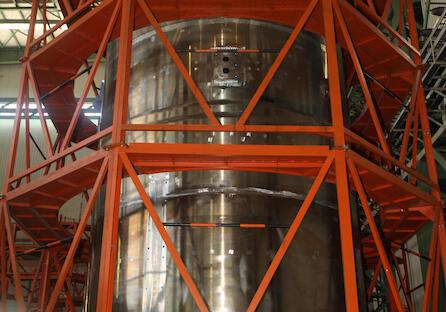

In the course of manufacturing, the new manufacturing process for core barrel has been independently developed, which effectively ensure machining accuracy of fuel pin holes and lower core support plate plane; auxiliary devices for IGA precision welding and precision finishing have been independently designed, improving the accuracy grade of IGA precision parts’ machining, assembling and welding; by making full use of its advantage in equipment, an all-in-one simultaneous machining technology of alignment plate pin hole has been independently developed, which improves fit precision of alignment plate locating pin and has reduced mounting difficulty; a set of set-up, locating and supporting devices for core shroud welding use are independently designed and developed, enabling to effectively reduce core shroud’s welding deformation and ensuring the precision of core shroud; a special machine for core shroud machining has been independently developed, enabling to effectively raise machining efficiency after the welding of core shroud and ensuring machining accuracy; and corresponding machining tooling and welding tooling have been designed according to product configuration.
