Low Power Consumption
At the current density of 2500 A/m², the electrolyzer's direct current power consumption is as low as 3.94 kWh/Nm³, representing a 12% reduction compared to the industry performance. Even at the rated operating condition of 4,000 A/m² current density, the direct current consumption remains only 4.19 kWh/Nm³.
High Current Density
This electrolyzer can operate at a current density of 8000 A/m², more than doubling the current density of traditional electrolyzers.
Wide Load Range
The maximum operating load range of this electrolyzer is 25% - 200%. At a 25% load, the direct current power consumption is only 3.70 kWh/Nm³.
Fast Response
The load - increasing and load - decreasing rate of this electrolyzer can reach 2.8 %/s, enabling fast and flexible response across a wide power range.

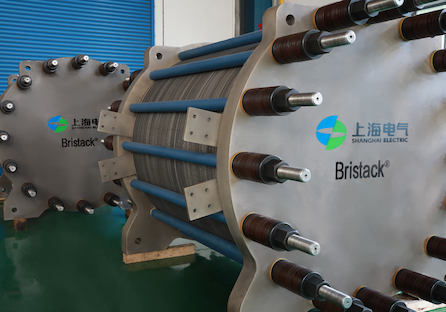

The Bristack®-Z1000 alkaline electrolyzer, a product of our company, has successfully received the authoritative certification of TÜV Rheinland. The product performance exceed the requirements of the project contract and reach industry-leading level. Moreover, the company has an annual production capacity of 1 GW alkaline electrolyzers.
Shanghai Electric is dedicated to providing customers with an integrated system solution covering "production-storage-refueling-utilization". Since its establishment, it has achieved breakthroughs in multiple application fields such as green chemical engineering, hydrogen metallurgy, hydrogen transportation, and hydrogen energy storage.
The hydrogen production capacity of this equipment ranges from 50-3000 Nm³/h. It has made breakthroughs in core technologies such as three-dimensional gas-liquid transfer design and high-consistency sealing integration. It boasts advantages such as ultra - high current density, a wide power fluctuation range, and High volumetric power ratio.
