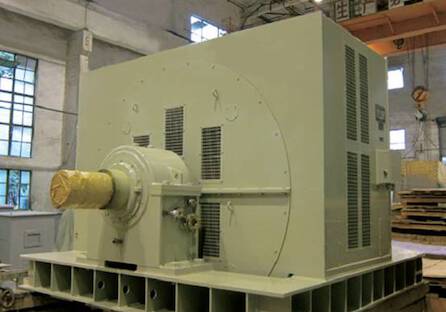

Mining mill motor
TM and tmw series high-power synchronous motors are a series of products specially designed and developed for the mechanical equipment of grinding mill. In recent years, the widespread use of air clutch technology can reduce the requirements for motor starting performance and other electrical equipment.The specification, capacity, type and performance of the matched TM and tmw series synchronous motors are enriched and improved.

    Capacity: 350kw-8000kw

    Voltage: 6kV, 10KV

    Number of poles: 24p-40p

    Speed: 150-250r / min

The mill motor developed by the company for the mining industry, with its stable and reliable performance, has been in the leading position in the industry for a long time.

Typical performance:

1Anhui Tongguan Mining Co., Ltd. tmw7500-36 10KV

2Guizhou Wengfu Group Co., Ltd. tmw7000-36 6kV

3Shanxi Xinfa Chemical Co., Ltd. tdmk6000-30 10KV

4, Zijin Mining Group Tajikistan project tmw5000-30 10KV

This series of motor is of horizontal structure, which has the characteristics of high efficiency, large out of step torque, small vibration, convenient installation and maintenance, etc.The stator is generally of integral structure, which is impregnated with F-class VPI solventless paint under vacuum pressure, so that the stator has good insulation performance and reliable mechanical performance, and can withstand the impact of electromagnetic force during starting.The rotor is of salient pole structure, the pole core is made of high-quality cold-rolled steel plate, and the full damping structure is adopted, so that the motor has good starting performance and damping capacity, and the center hole for air clutch is opened on the rotor main shaft.
