E Class CCPP(270MW Class)

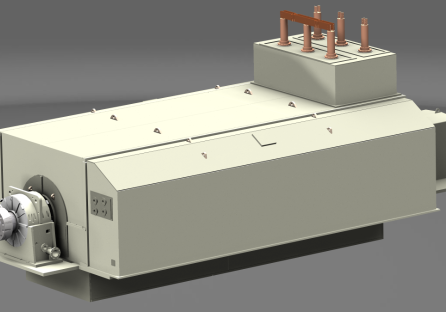

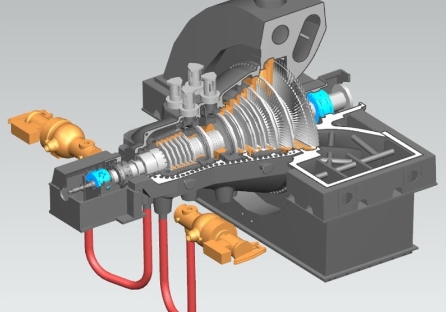

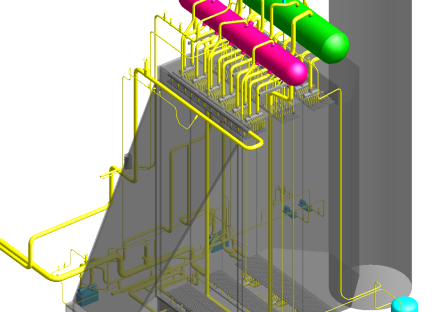

Shanghai Electric AE94.2 type gas turbine and QF-180-2 type air-cooled gas turbine generator are selected to form the power equipment of gas turbine island in the E-Class 1 on 1 multi-shaft combined cycle., IL single casing module or IS + LD double casing module steam turbine and QF-100-2 type air-cooled generator are selected to form the power equipment of steam turbine generator, and SGH-E double pressure non reheat HRSG is matched.
Shanghai Electric has rich design capacity, technical accumulation and engineering experience of combined cycle equipment. It aims to provide efficient and reliable combined cycle unit equipment and solutions from the perspective of users, solve the energy demand of users for power and heating, and create the maximum benefit of the whole life cycle for users.
CCPP output:~270MW
CCPP efficiency:≥53.1%
Steam extraction:
Industiral(<4.0MPa):~250t/h
District:~200t/h(NC),~300t/h(NCB)
