Shanghai Electric Gas Turbine Co Ltd-
F Class CCPP(483MW Class)

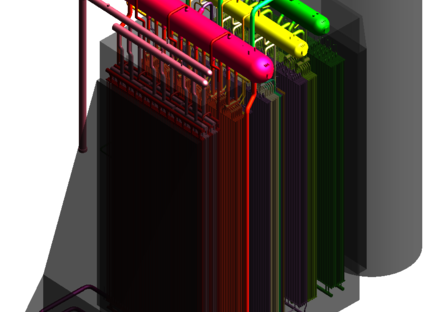

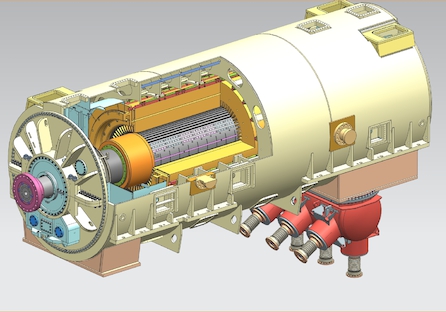

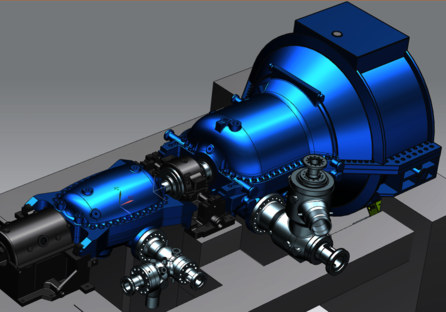

Ae94.3a gas turbine and QFSN-300-2 water hydrogen cooled gas turbine generator are selected to form the power equipment of gas turbine island in Shanghai Electric F class 1 on 1 multi-shaft combined cycle, HI + LD or HS + ILA double casing module steam turbine and QF-150-2 air cooled generator are selected to form the power equipment of steam turbine generator, and SGH-F triple-pressure reheat type HRSG is matched. AE94.3A gas turbine, HS + ILA double casing steam turbine and QFSN-500-2 water hydrogen cooled generator are selected as the power equipment of the turbine island for 1 on 1 single-shaft combined cycle, which is matched with SGH-F triple-pressure reheat type HRSG.

Shanghai Electric has rich design capacity, technical accumulation and engineering experience of combined cycle equipment. It aims to provide efficient and reliable combined cycle unit equipment and solutions from the perspective of users, solve the energy demand of users for power and heating, and create the maximum benefit of the whole life cycle for users.

CCPP output:~495MW
CCPP efficiency:≥60.5%
Steam extraction:
Industiral(<3.0MPa):~250t/h
District:~300t/h(NC),~400t/h(NCB)
