Shanghai Electric Gas Turbine Co Ltd-
E class(AE94.2 and AE94.2K/KS)

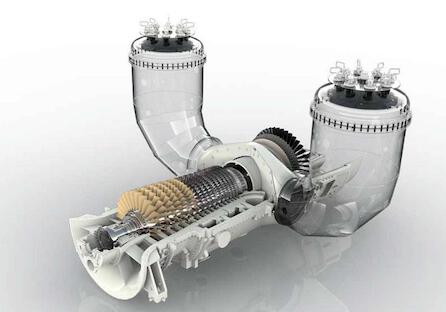

AE94.2 (E Class) gas turbine, is widely used in overseas markets and some domestic markets. Its greatest feature is its reliability and durability, as well as its high output performance. In addition, because of its unique cylindrical combustion chamber, it can adapt to a variety of special fuels, including light oil, some heavy oil, blast furnace gas, coke oven gas, etc. It has gained favor from many dual- fuel-demand customers in global and domestic market. In terms of structure, AE94.2 and AE94.3A are basically the same. A horizontally splitted cylinder and a central tied-rod rotor are adopted. The compressor has 16-stage axial flow and 1-stage adjustable IGV. The first six compressor blades are coated with anticorrosive coatings and the four-stage axial flow turbine. The major difference is that the combustion chamber adopts two cylindrical combustion chambers distributed on both sides of the GT body, with eight burners on each upper part of the combustion chamber. The normal loading rate of AE94.2 is 11 MW/min and 30 MW/min for peak load regulation, which also has the characteristics of quick start-up and shutdown.

Gas turbine, honored as the "crown pearl" of manufacturing industry, plays an unparalleled role in today's power generation field because of its cleanliness, environmental protection, fast and flexible. Shanghai Electric has been cooperating with its gas turbine industry since it acquired 40% stock of Ansaldo, Italy, in 2014. The main three gas turbines are AE94.3A, AE94.2 (or AE94.2K/KS), AE64.3A. They all have many characteristics, such as cleanliness, high efficiency and flexibility, which bring customers diversified options and efficient economic benefits.


The AE94.2 is a compact, reliable unit, with the feature of easy maintenance,superior fuel flexibility, fast start and environmental sustainable.

1) Structural features: high efficiency 16-stage axial flow compressor, with 1 stage IGV, two silo combustion chambers with 2*8 dry low NOx hybrid burners for both fuel gas and fuel oil, and 4-stage turbine.

2) Easy maintenance: robust rotor design with hign stiffness, low weight, easy maintenacce on site.

3) Efficient and Reliable secondary air system, featured Rotor Displacement System.

4) Superior Flexibility: the special version AE94.2K/KS designed for very low BTU gas, LHM>3MJ/Nm3.

5) Fast start: fast ramp and hot restart capabilities, and time to reach base load within 30 min.

6) Fully assembled shipping for gas turbine. Highly integrated auxiliary systems.
