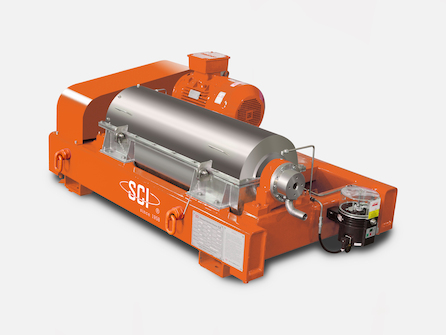

LW Series Centrifuges For Sludge Dewatering
    Description

    Our decanter centrifuges can continuously separate fine solids from liquid. It can be used for dewatering, clarification, thickening, as well as particle size classification. It is widely used in sludge reduction and dewatering treatment in the fields of municipal water supply, industrial wastewater, landfill leachate treatment, food residue, wastewater from rear farm, engineering mud treatment, tailings treatment, washing of fly ash and other fields.


Main Technical Parameters

Model

L/D *

Max Capacity*


（m3/h）

Max Solid Discharge Capacity*


(m3/h)

Motor Power

(kW)

Weight**

(kg)

Dimension**

(L×M×H) (mm)

LW220

3.0-5.0

5

0.4

7.5-11

760

1600×1100×850

LW300

3.0-5.0

15

0.8

11-15

1500

2470×1230×850

LW350

3.0-5.0

20

1.2

15-22

2000

2790×1300×880

LW400

3.0-5.0

30

2.0

18.5-30

2600

2950×1400×850

LW450

3.0-5.0

45

2.5

22-37

3200

3300×1500×920

LW530

3.0-5.0

70

5.0

37-55

5200

3730×1600×1100

LW580

3.0-4.3

90

8.0

55-90

7000

4000×1400×1600

LW650

3.0-4.3

100

13.0

75-110

8500

4300×1900×1350

LW760

3.0-4.0

150

21.0

110-160

15000

5000×2500×1500

LW900

3.0-4.0

240

35.0

132-200

20000

6500×2700×1500

LW1100

3.0-4.0

400

64.0

200-315

25000

7000×3000×1700








*The actual processing capacity depends on the particle size and specific application

**Parameters of the hydraulic-driven centrifuge
